Dark Brown 30W 60W 80W Outdoor LED Wall Pack IP65 9600 Lumen
Dusk-to-Dawn ETL Rating 5 year warranty
Our Company
Founded In 2007 With 90 Workers And 8 Engineers Cover 3500㎡
Factory Under Iso9001 & Iso14001 System
Specialized In Commercial & Industrial Lighting
Most Products With Ce, Rohs, Saa, Ul, Dlc, Tuv, Atex.
With 5 Design Patents & 3 New Practical Patents
5-8 New Products Are Launched Per Year
2 Production Lines,Monthly Capacity 10,000pcs
Description:
Product: Led Wall Pack Light
Power Consumption: 60w
Input Voltage: 100-277Vac
Color Temperature: 5000K
Beam Angle: 120°
IK Rated: IK07
Housing: Die-casting Aluminum
Diffuser: Tempered Glass
Color Temperature(CCT): Cool White
Applications:
Our LED wall pack is ideal product for outdoor walkways, entry
ways, pathways, landscape lighting, public area floodlights, and
security lighting, etc.
Commercial buildings: Wall packs are commonly installed on the
exterior walls of commercial properties such as retail stores,
office buildings, warehouses, and industrial facilities to provide
lighting for entryways, walkways, and parking areas.
Residential communities: In residential areas, wall packs are often
used to illuminate the exterior walls of apartment buildings,
townhouses, and condominium complexes, as well as the common areas
and pathways.
Institutions and public facilities: Wall packs are popular choices
for illuminating the exteriors of schools, universities, hospitals,
government buildings, and other public facilities.
Hospitality and entertainment venues: Hotels, restaurants,
theaters, and other hospitality and entertainment establishments
may use wall packs to enhance the ambiance and safety of their
outdoor spaces.
Parking lots and garages: Wall packs can be installed on the walls
of parking lots and garages to provide security lighting and
improve visibility for pedestrians and vehicles.
Security and safety applications: The directional lighting provided
by wall packs makes them suitable for enhancing security and safety
in areas such as building entrances, loading docks, and other
vulnerable spots.
Specifications:
Model No.: | AW-WP813 | AW-WP813 | AW-WP813 |
Power: | 30W | 60W | 80W |
Input Voltage: | 100-277Vac
| 100-277Vac | 100-277Vac |
LED Type: | SMD3030 | SMD3030 | SMD3030 |
Lumens Output: | 3600lm | 7200lm | 9600lm |
Efficency: | 120lm/w | 120lm/w | 120lm/w |
Equivalent: | 100W HPS/MH | 200W HPS/MH | 250W HPS/MH |
CRI: | 80+ | 80+ | 80+ |
Beam Angle: | 120° | 120° | 120° |
Color Temperature: | 3000K, 4000K, 5000K, 5700K | 3000K, 4000K, 5000K, 5700K | 3000K, 4000K, 5000K, 5700K |
Photocell: | Optional | Optional | Optional |
IP Rating: | IP65 | IP65 | IP65 |
Working Temp: | -20° C ~ 50° C | -20° C ~ 50° C | -20° C ~ 50° C |
Finish: | Dark Brown | Dark Brown | Dark Brown |
Housing Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
Diffuser Material: | Glass | Glass | Glass |
Installation: | wall mounted | wall mounted | wall mounted |
Lifespan(L70): | >80,000 Hours | >80,000 Hours | >80,000 Hours |
Warranty: | 5 Years | 5 Years | 5 Years |
Certification: | ETL, cETL, DLC | ETL, cETL, DLC | ETL, cETL, DLC |
Structure Features:
Shell materials: Aluminum & Glass.
Finish: Dark Bronze/Black

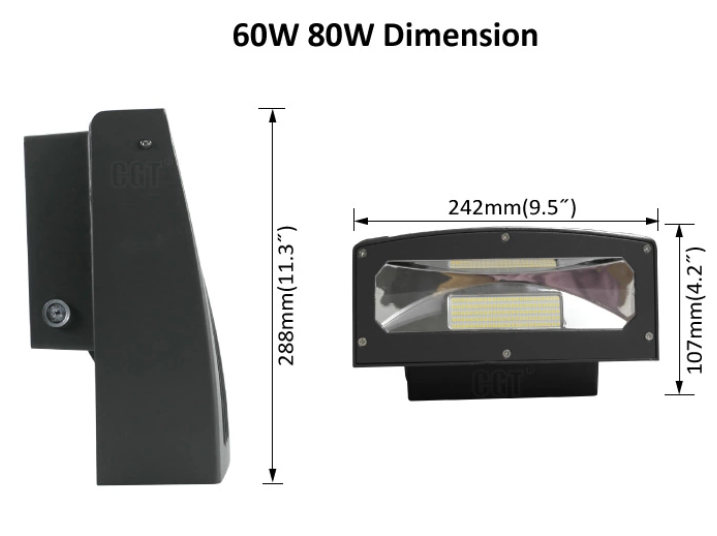

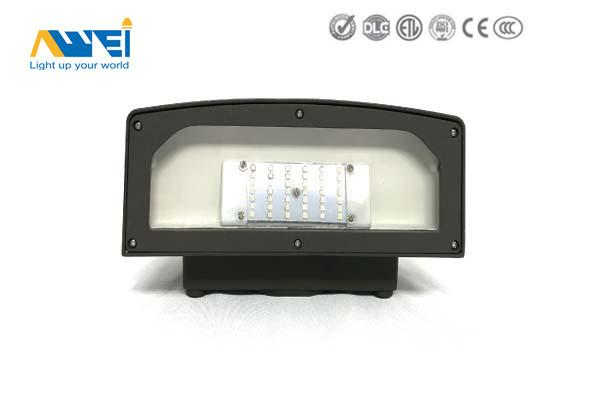

Product pictures:
