AC220V 50/60Hz 70W-100W 120LM / W Explosion Proof LED Light IP66 WF2 Rated For Explosive Places

Description:

Rated voltage: AC220V 50/60Hz
Protection level: IP66
Anti-corrosion grade: WF1 "WF2
Installation method: X: ceiling type, b: wall type, g: boom type, f: flange type, h: guardrail type
LED light source: 60W-120W
Lamp weight: 5.4kg

Applications:

This product has good explosion-proof function, suitable for various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each Efficient lighting in factories, stations, large facilities, venues and other places.

Specifications:

Competitive Advantage:

(1) The lamp body is made of aluminium alloy by die casting. The surface of the lamp is sprayed with high voltage electrostatic. The exposed fastener is stainless steel with high anticorrosive performance. The whole lamp has excellent anticorrosive performance.

(2) High-strength transparent cover, high light transmission, impact resistance, unique anti-glare design, with optical reflector cup, high reflection efficiency. (3)The explosion-proof structure designed in accordance with the national explosion-proof standard GB3836 has reliable explosion-proof performance, long life, special constant current power supply, low power consumption, constant output power meter, high temperature and aging resistant silica gel sealing ring, and high protection grade.

(4) Adopt the international first-line brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up.

(5) Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps.

(6) Cable wiring, fast and convenient;

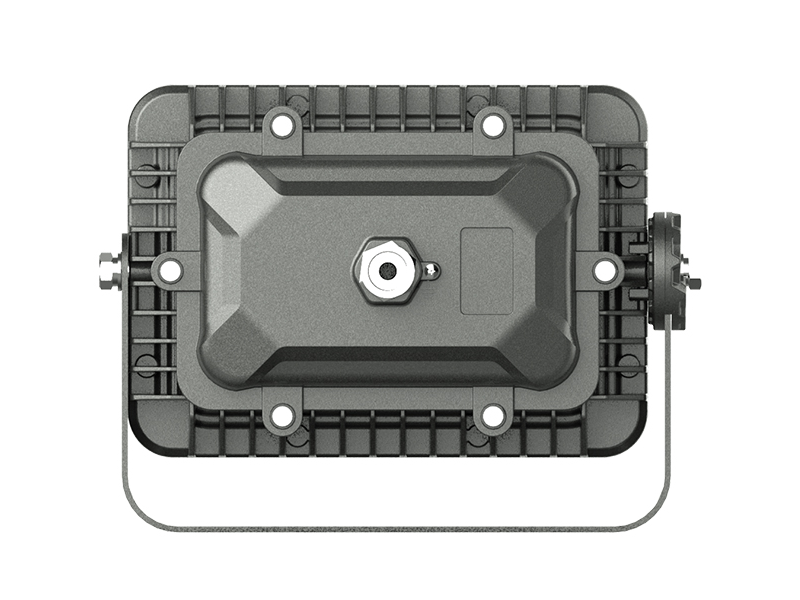

Product pictures:

Caution:

Schematic diagram

1. Before installation, it is necessary to check whether the actual operating conditions are in conformity with the parameters listed on the lamp nameplate.

2. Before installation, please test the lighting according to the parameters of the lamp nameplate to ensure that there is no quality problem before installation.

3. Before installation, it is necessary to determine the installation location and mode of the lamps according to the installation mode provided by the product, in combination with the on-site use environment and lighting requirements, so as to ensure that the installation is firm and reliable.

4. Connect the prepared cables with the input cables of lamps and lanterns according to the corresponding fire (brown), zero (blue) and ground (yellow-green) wires, so as to ensure that the connection is firm, and make good insulation and waterproof measures at the connection.

5. The input end of the cable can be connected to the power supply of the corresponding voltage to illuminate.

Using The Matters Needing Attention

1. This product is an explosion-proof product and can be used in explosion-proof places.

2. When transporting, the lamp should be installed in the carton equipped with foam shock absorption.

3. When using, the surface of the lamp has a certain temperature rise, which is a normal phenomenon.

4. The power supply voltage can work normally in the rated voltage. If the power supply voltage is too high, the lamp will be damaged; if the voltage is too low, the lamp will not start normally.

5. The luminaire must be reliably grounded.
