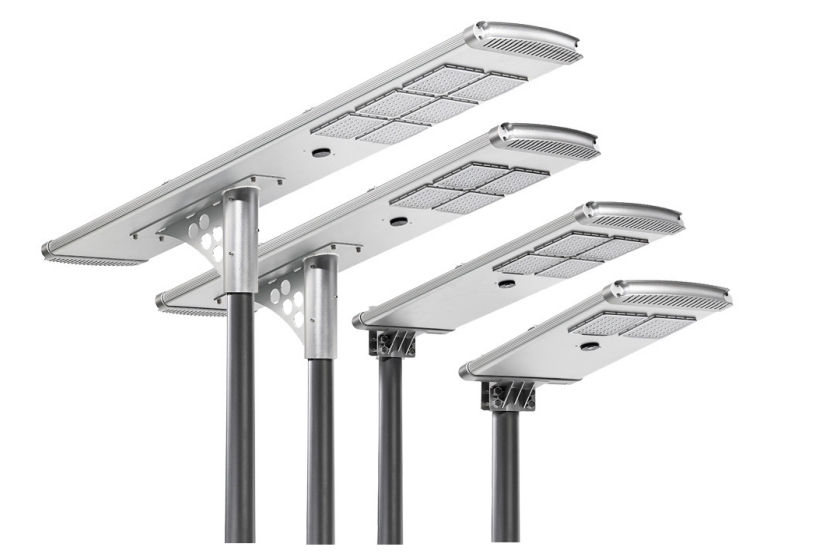

30W-120W Die-casting Aluminum Solar Dusk To Dawn Street Light
170LM/W High Efficiency IP65 For Roads And Streets
Description:
PAD series put high efficiency mono solar panel,intelligent MPPT
charge controller,deep cycle long life
LifePO4 battery,high lumen led bridgelux 3030 led chip all in one
box,easy to install and transportation.
Product features:
- Use High end die-cast aluminum forming
- With Intelligent power regulation, automatic judgment of weather.
- With intelligent remote control.
- With intelligent discharge management.
- For total lamp can reach 170LM/W
- With IP65 waterproof IP grade,can work in water in a short time.
- Very easy disassemble,install and transportation.
Specifications:
| Type Model | PD-30W,PD-40W,PD-50W,PD-60W,PD-80W,PD-100W,PD-120W |
| Lumen | 170LM/W |
| Color temperature | 3000K 4000K 5000K 6000K 7000K |
| Material+appearance treatment | High end aluminum alloy+Anodizing |
| Lithium battery | LifePO4 battery 12.8V(300WH-800WH) |
| Solar panel | High efficiency mono solar panel 18V(50W-140W) |
| LED chip | Original bridgelux 3030 led chip |
| IP grade | IP65 |
| Discharge time | 12hours lighting per day with motion sensor,support 10-12 rainy and
cloudy days |
| Charging time | 6-7hours(bright sunshine) |
| Install diameter | Φ60-65mm(Advice) |
| Working temperature | -25℃－+65℃ |
| Certificates | CE ROHS IP65 ISO9001 |
| Warranty | 3 years |
| Remote control | Yes |
| Color rendering index | Ra≥80 |
|
Solar lights controller status indicator | LED indicator status | Indicator light description |
| Red(Flicker) | Solar panel is charging the battery |
| Red(On) | Battery charged to full power |
| Blue(Off) | Battery without output |
| Green(On) | Light on |
Product pictures:
Applications:
Widely used in branch roads, streets, and factory roads, parks,
villages, mountains and remote areas,
lighting projects, courtyards, schools,plaza
Streets and Roads: Solar LED street lights are commonly used to
illuminate urban streets and roads, providing safe and reliable
lighting for vehicles and pedestrians.
Highways and Expressways: These lights can be installed along
highways and expressways to enhance visibility and improve road
safety during nighttime driving.
Parking Lots: Solar LED street lights are ideal for lighting up
parking lots, ensuring proper visibility for drivers and
pedestrians and enhancing security.
Pathways and Sidewalks: They can be installed along pathways,
sidewalks, and walkways in parks, residential areas, and commercial
complexes to ensure safe navigation during the night.
Parks and Recreational Areas: Solar LED street lights are suitable
for illuminating parks, playgrounds, and other recreational areas,
allowing people to enjoy outdoor activities even after sunset.
Industrial and Commercial Areas: They can be used in industrial
zones, warehouses, factories, and commercial areas to provide
efficient and reliable lighting for increased safety and
productivity.
Rural and Remote Areas: Solar LED street lights are particularly
beneficial in rural and remote areas where access to electricity
may be limited. They offer a sustainable lighting solution without
the need for extensive infrastructure.
Campus and Educational Institutions: These lights can be installed
on educational campuses, including schools, colleges, and
universities, to provide adequate lighting for pathways and outdoor
areas.
Military Installations and Security Zones: Solar LED street lights
can be used in military installations, security zones, and border
areas to enhance visibility and security during nighttime
operations.
Public Spaces: They are suitable for lighting up public spaces such
as plazas, squares, bus stops, and train stations, ensuring safety
and convenience for pedestrians and commuters.
